Box Trailer 4.0m.
Room for a real cookline.

The extra half metre is the difference between a cramped shift and a workable one. Room for a serious cookline, more cold storage, and a service flow that keeps queues moving at peak.

Indicative, standard spec $24,000+ GST
In stock now Check availability → Pay deposit →

$2,000 to hold this trailer — balance due before registration or at pickup. Secure payment via Stripe.

3D cutaway render of the 4m box trailer interior fitout

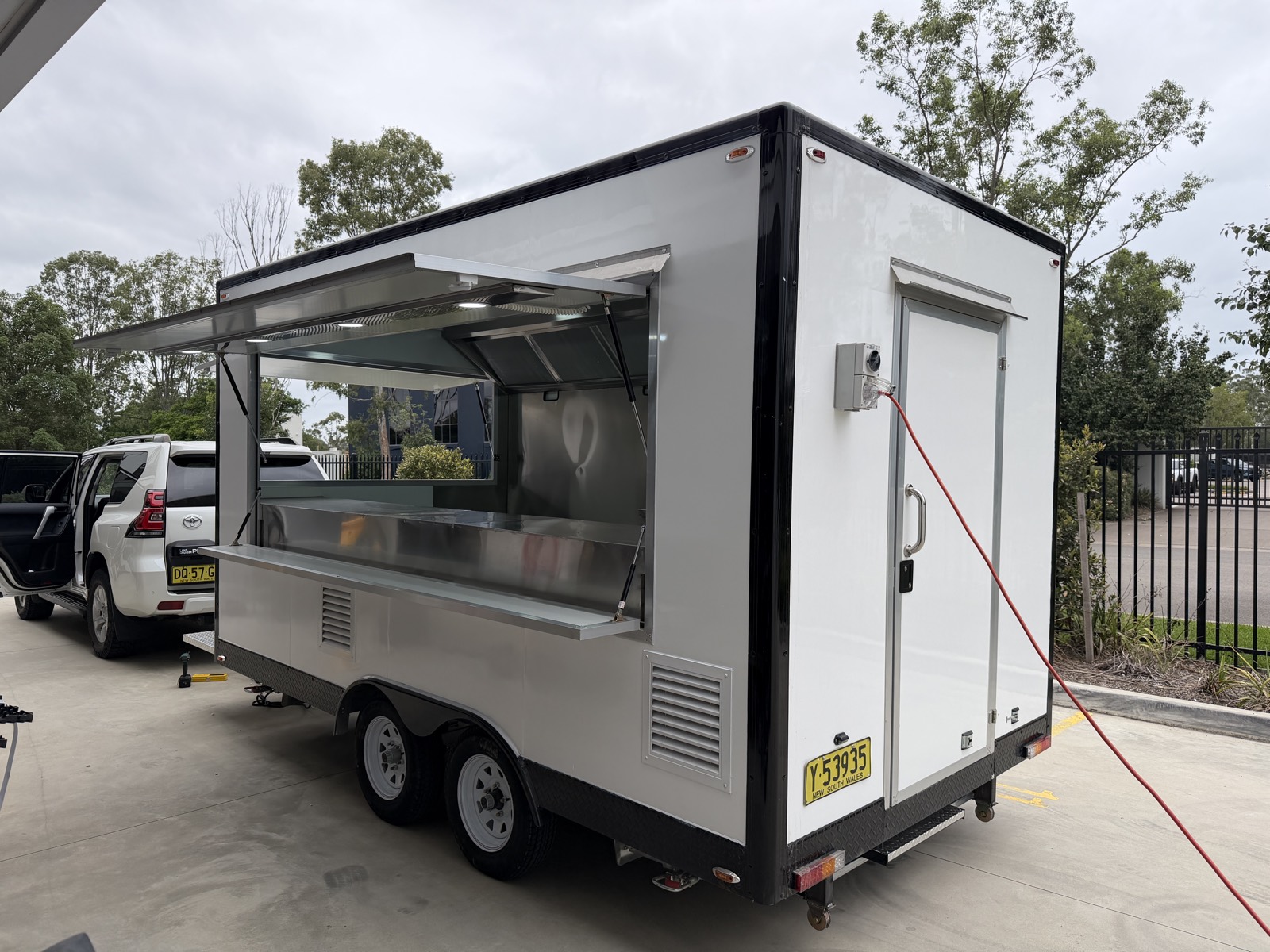

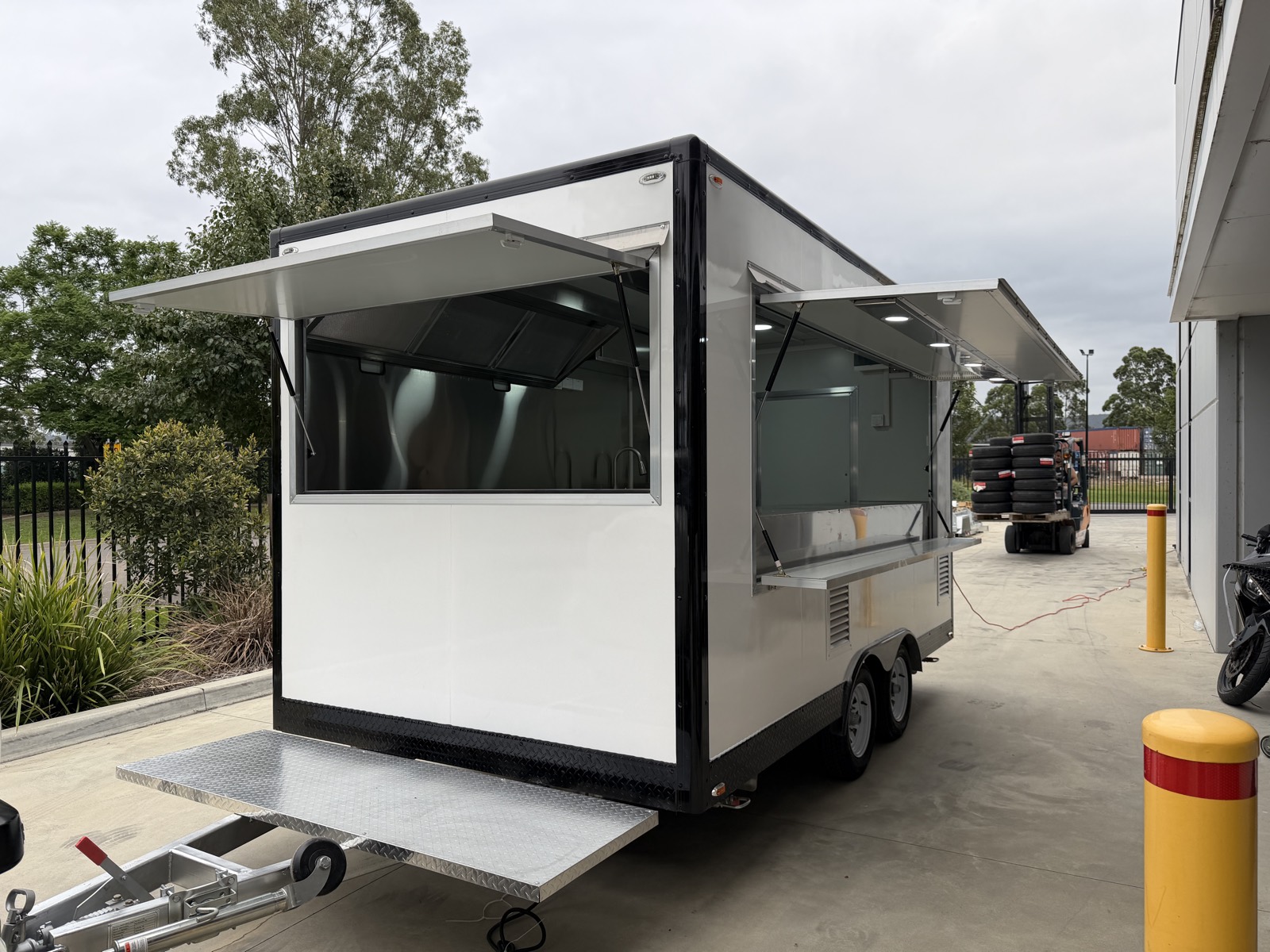

In the flesh

The actual trailer.
Not a render.

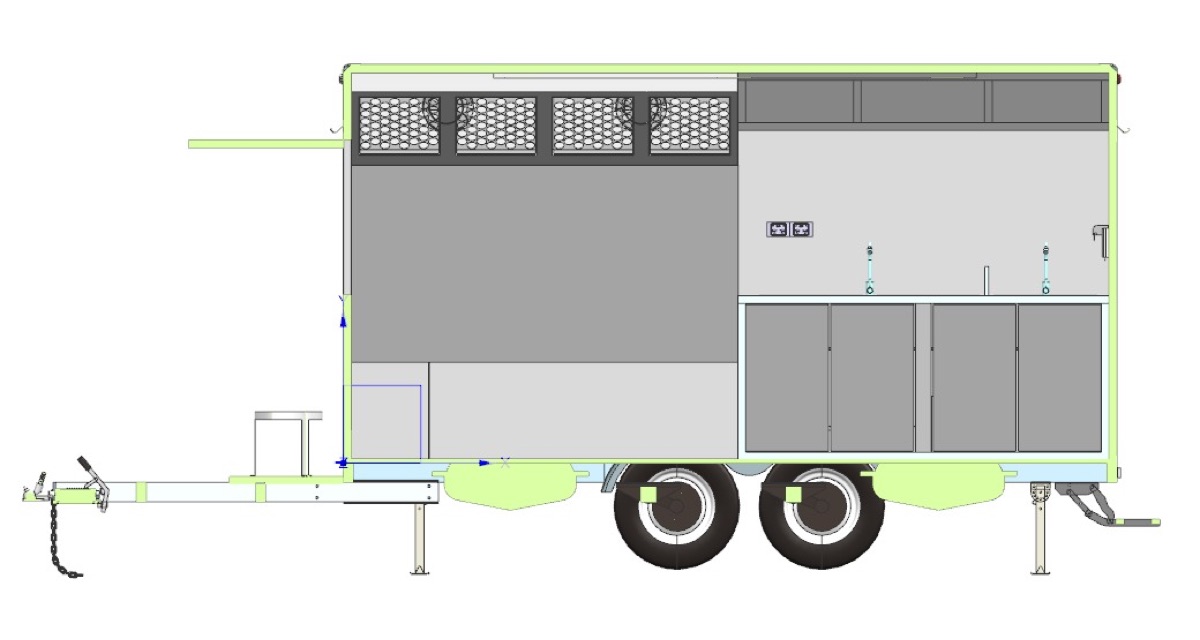

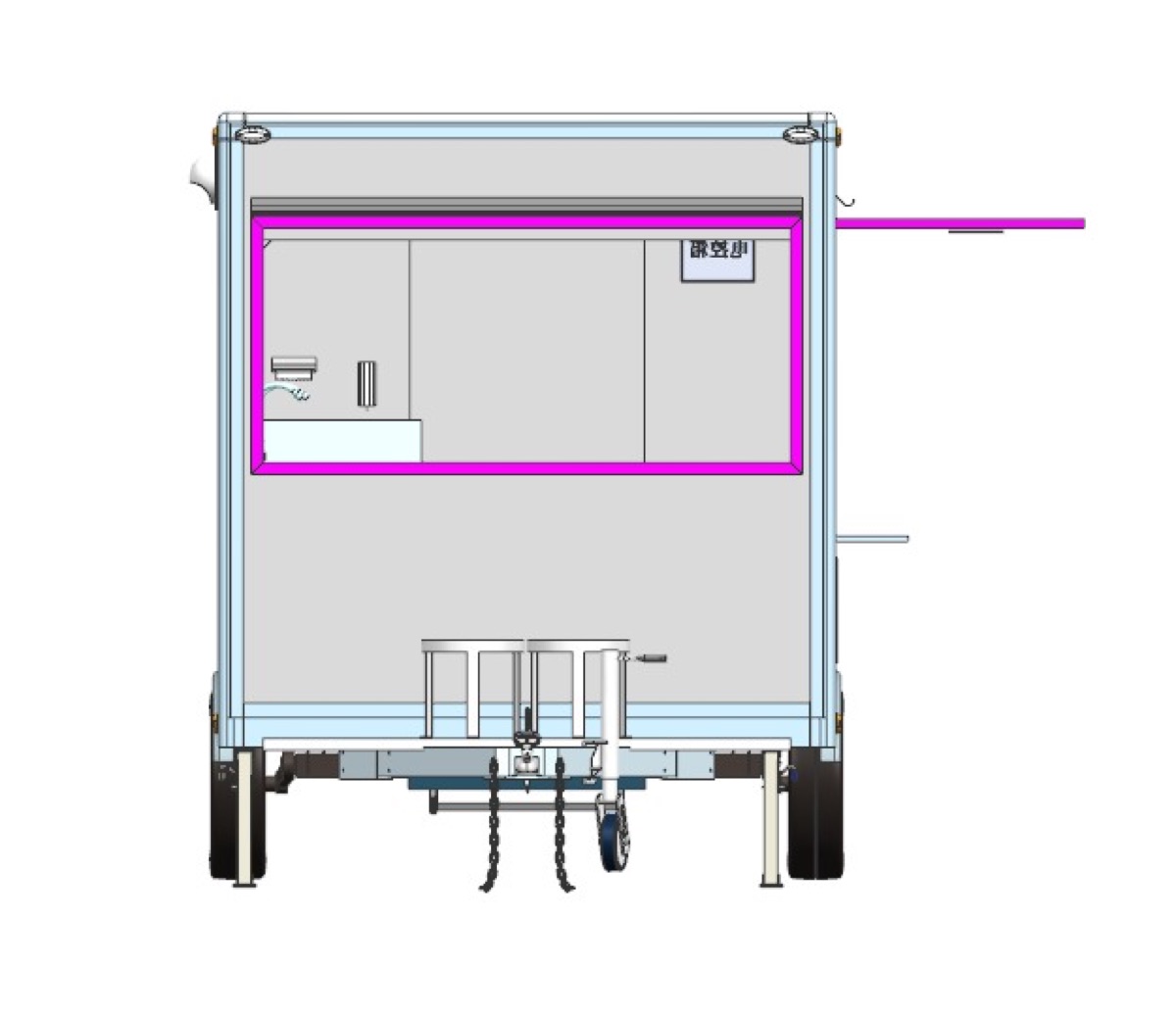

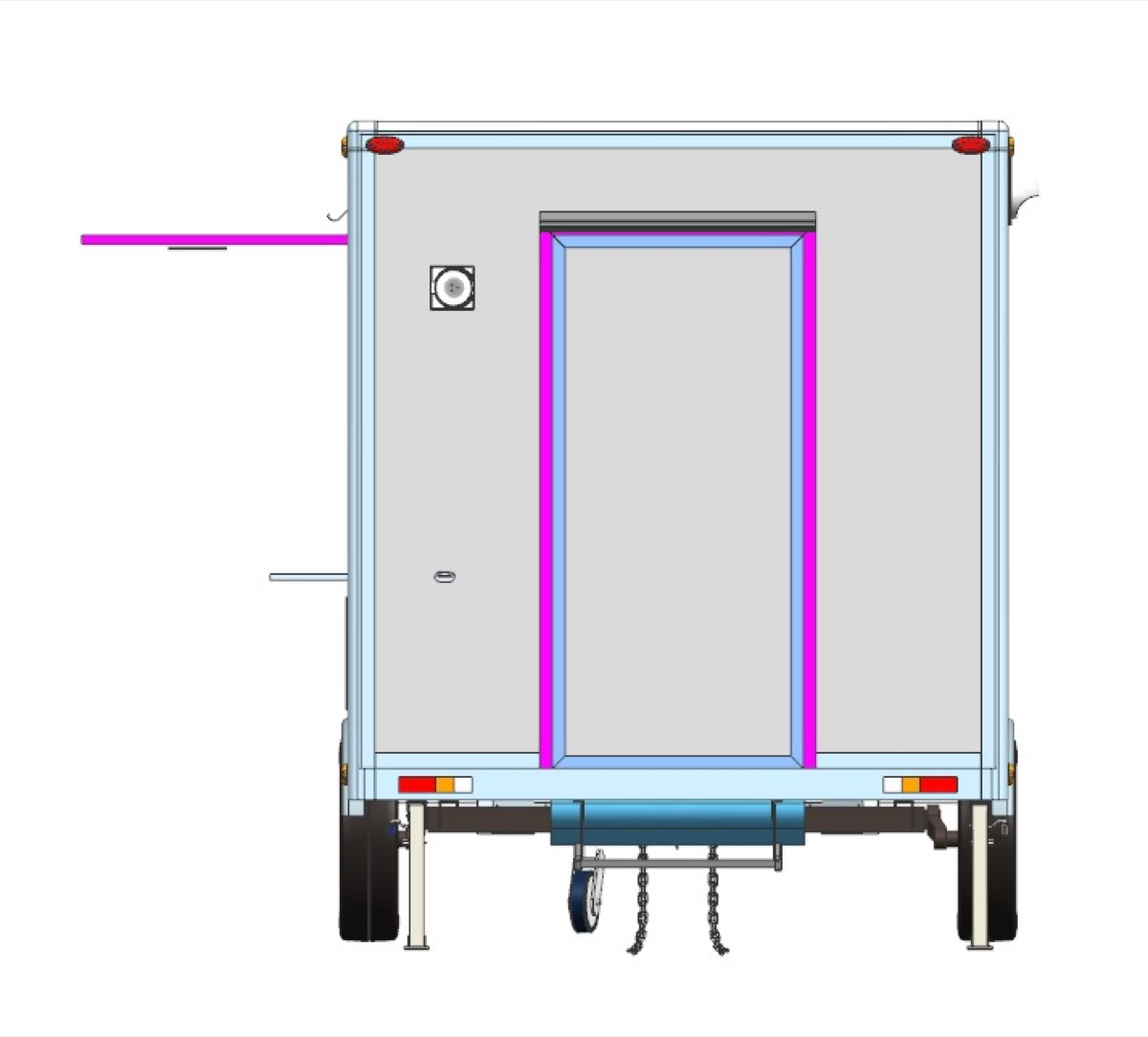

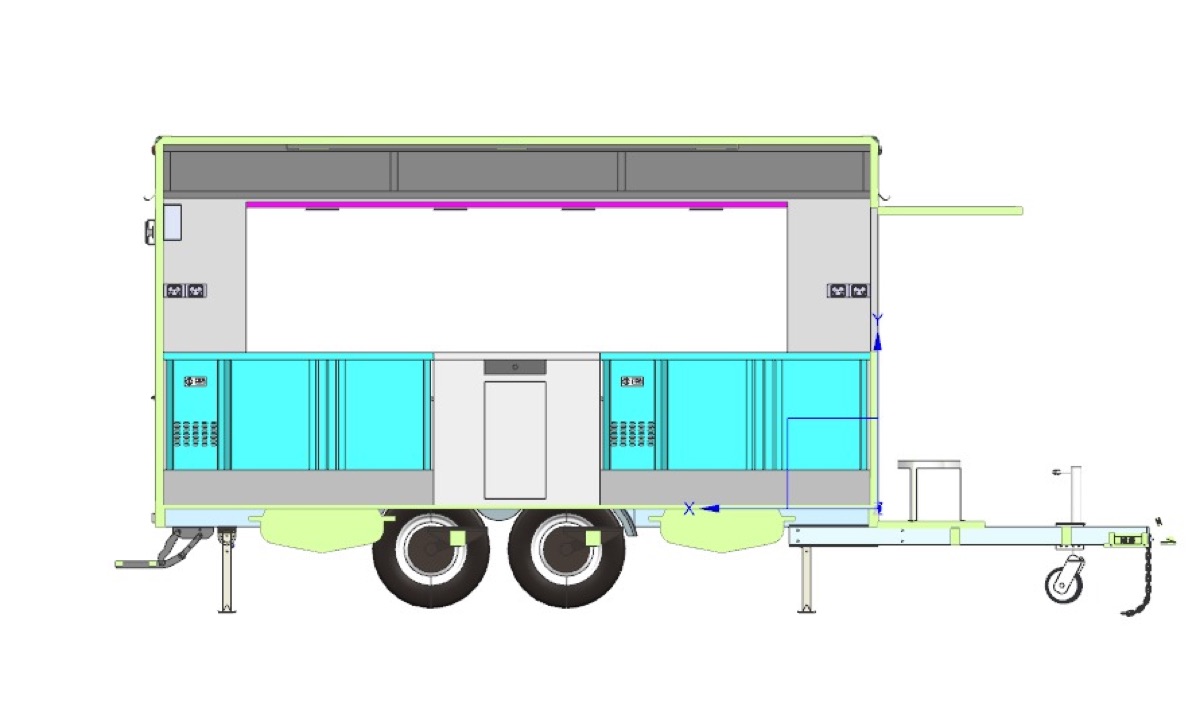

Front schematic elevation of the 4m box trailer, service window highlighted Rear schematic elevation of the 4m box trailer, door highlighted Side exterior elevation of the 4m box trailer Side interior elevation of the 4m box trailer, fitout highlighted

SHOP DRAWINGS · FRONT, REAR & SIDE ELEVATIONS

Body & chassis

Body
4,000 L × 2,100 W × 2,300 H mm
Axle
Double axle
ATM
2,000kg
Chassis
Galvanised steel
Coupling
Override coupling, 50mm towball, mechanical brakes

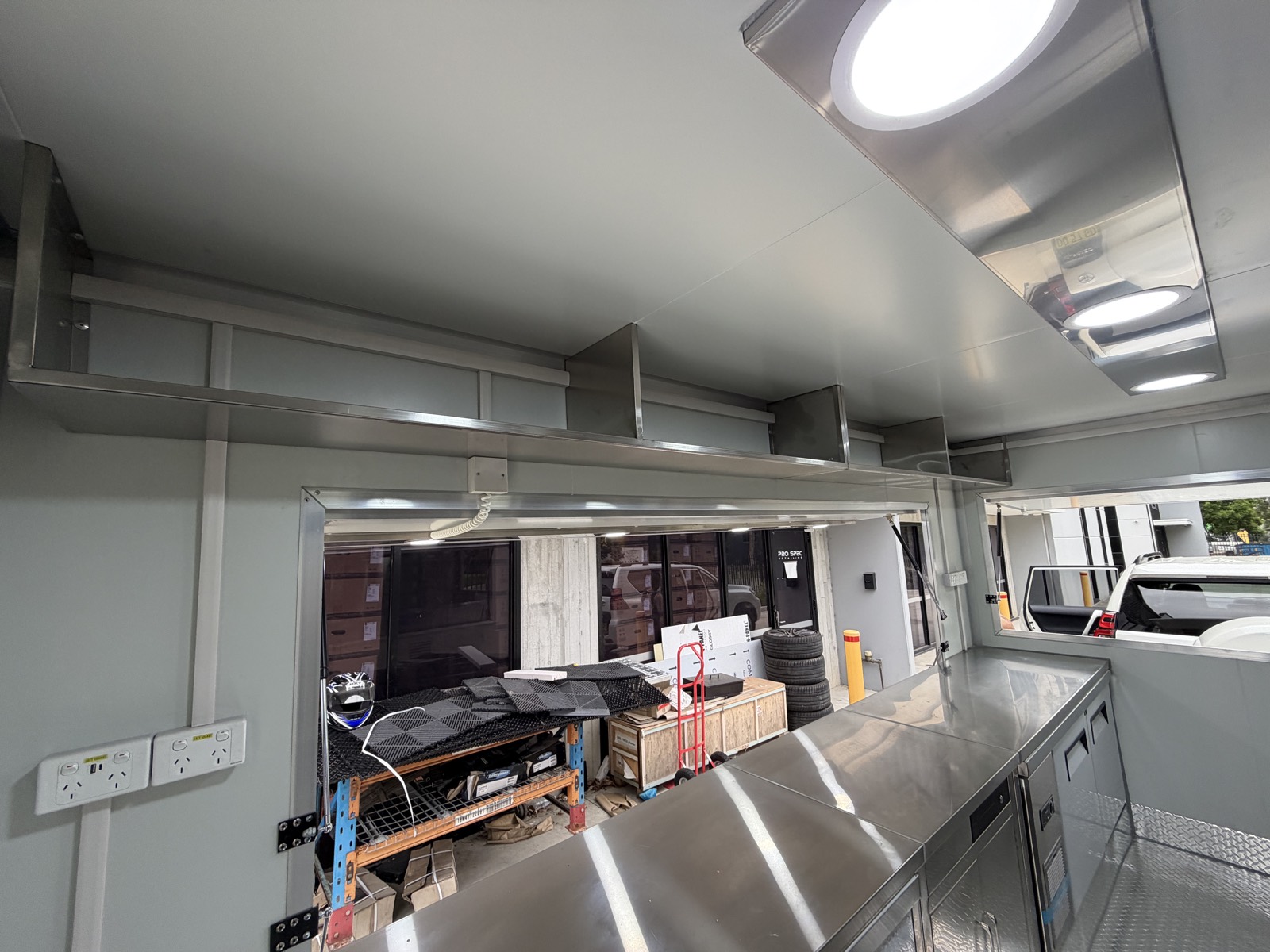

Fitout

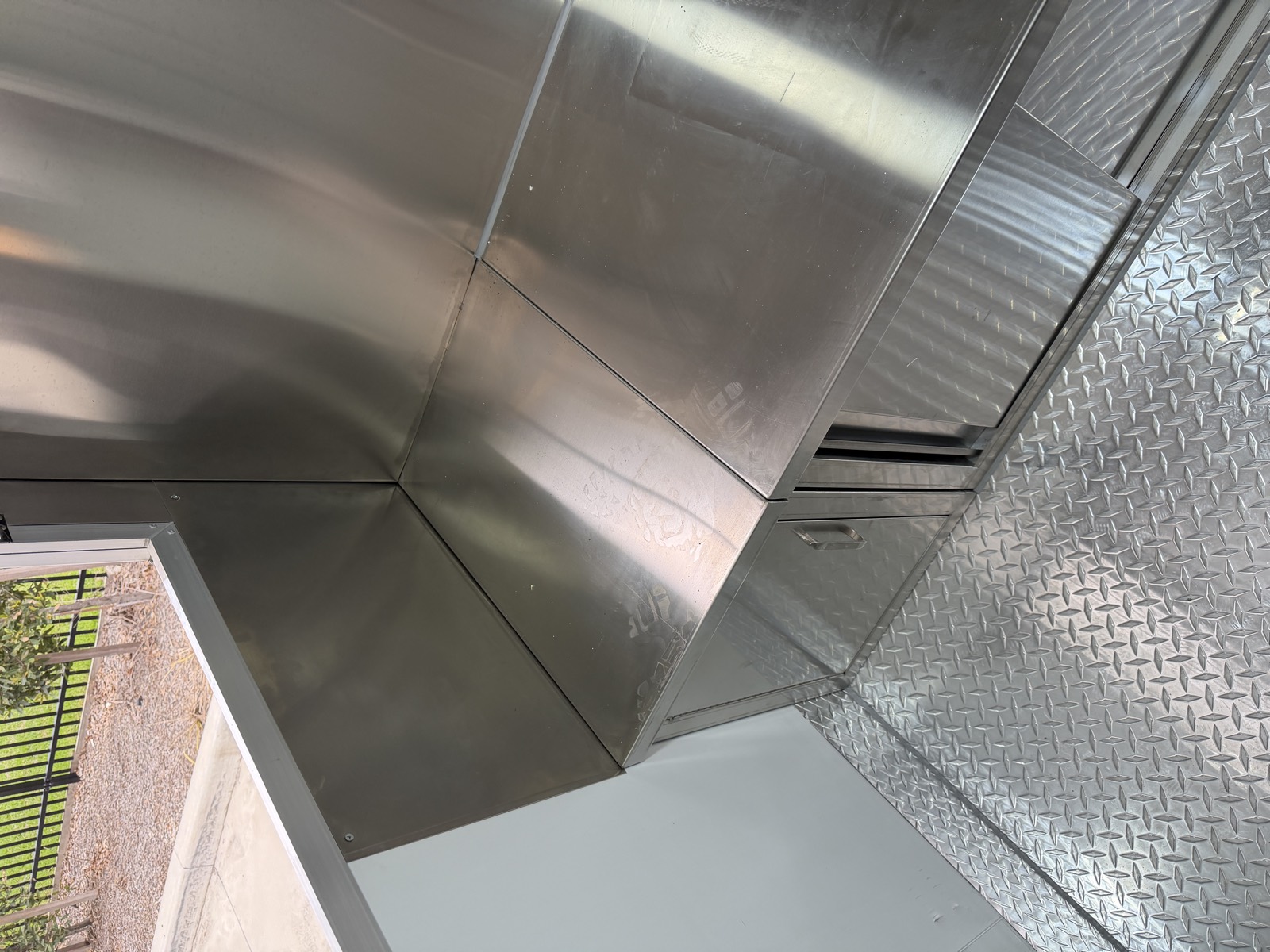

Benches
304 food-trade stainless steel
Ventilation
Rangehood fitted

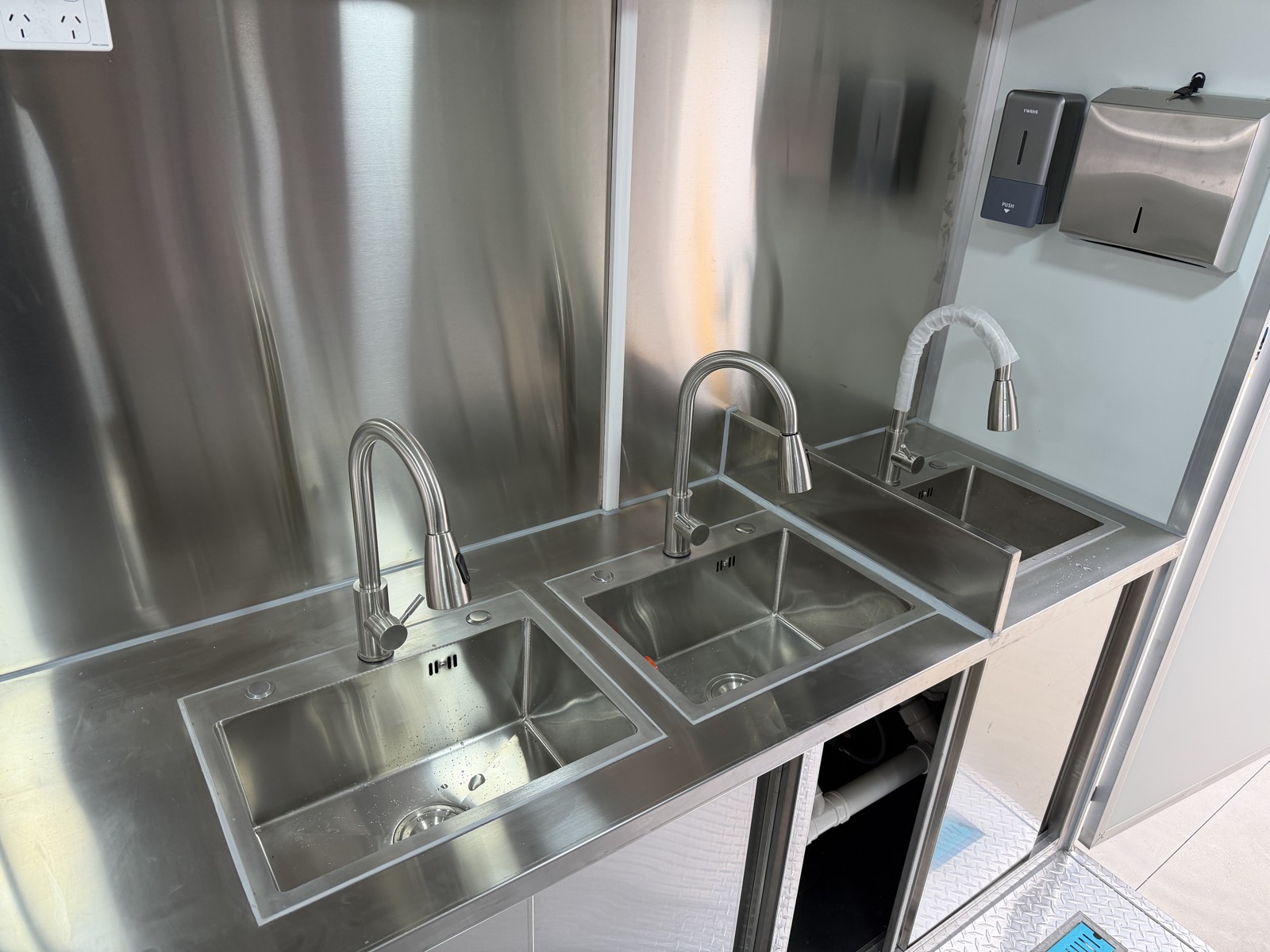

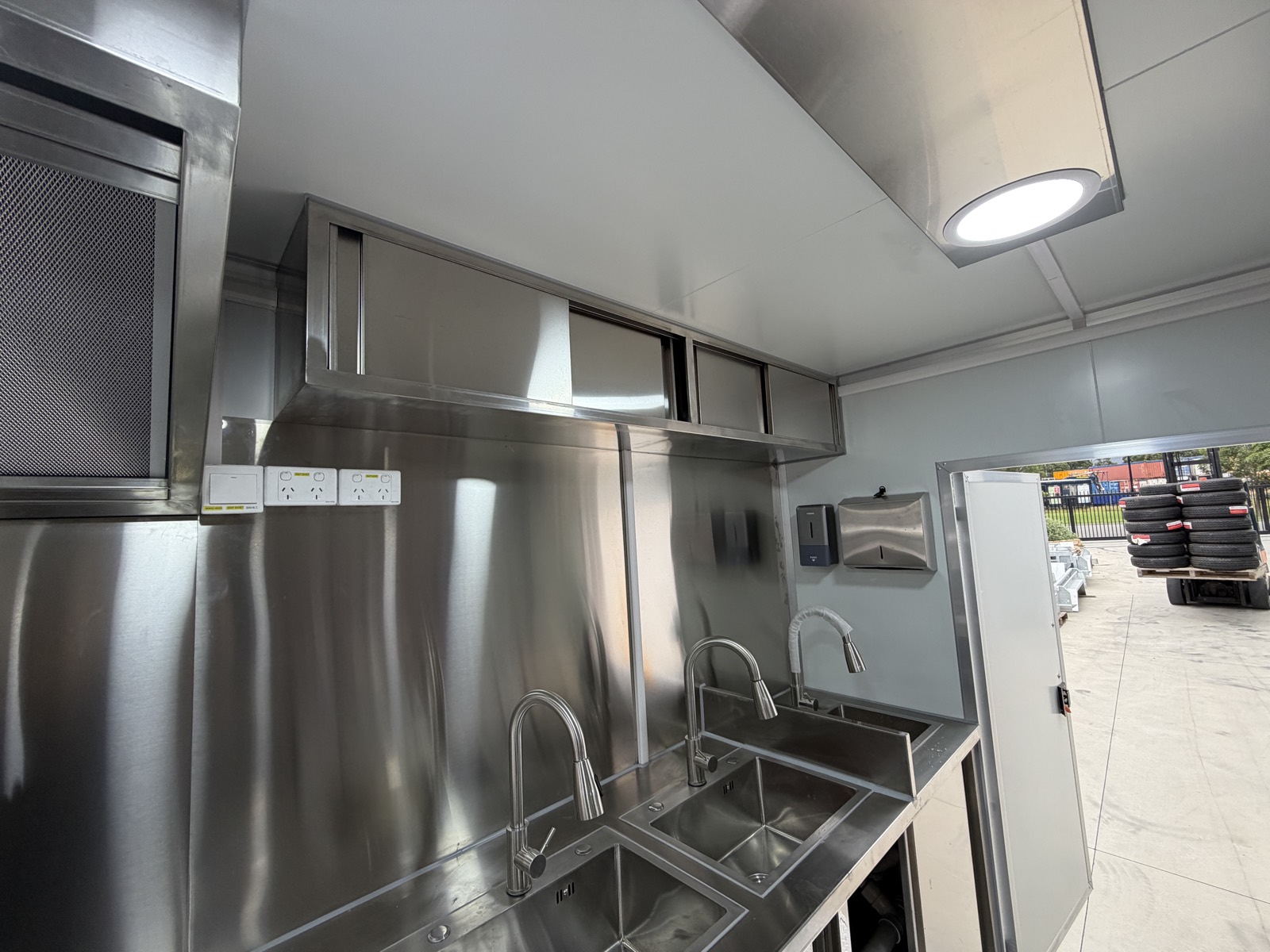

Sinks
Double sink plus separate hand basin, oversized
Window
LED-lit serving window, oversized for airflow, with an overhead shelf along the service side
Walls
Fire-rated insulation boards behind walls adjacent to cooking appliances; vents behind fridges/freezers

Power, gas & water

Power
240V 15A inlet, RCD switchboard, 10A power outlets
12V
LED lighting, USB-C charging
Water
120L fresh, 120L grey, instant water heater
Gas
Gas bottle holders fitted; gas work completed and certified separately by our qualified gasfitters

Compliance & warranty

Road
Comes with a blue slip and weighbridge ticket, ready to register at Service NSW — or we can arrange registration for you and invoice it separately
Gas
Completed and certified by our qualified gasfitters if you opt for gas work; certificate provided
Electrical
Certificate of Compliance for Electrical Work (CCEW) provided
Warranty
12 months on structure and fitout, 6 months on supplied equipment

Make it yours

Same trailer.
Your name on it.

Every in-stock trailer can be wrapped and branded before handover, so it turns up looking like your business instead of a white box you still have to sort out.

Wrapping & branding →
  • Full or partial vinyl wrap in your livery
  • Logo, menu board and pricing panels
  • Signage for the serving window and sides
  • Allow 2 weeks turnaround after artwork approval
  • We handle the artwork, adapting your design to our printing machines and trailers — wrap warranted for 5 years

Ready when you are

Ask what is

actually on the floor.

Stock moves. Send an enquiry or call and we will tell you what is available right now, what it costs delivered to you, and whether this spec suits your menu.

Start an enquiry →
